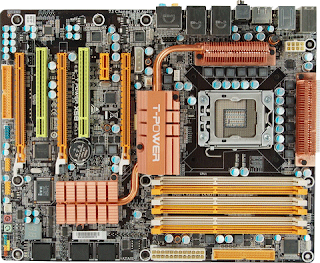

The Intel X58 Express Chipset supported the latest Intel Core i7 Processors using QuickPath Interconnect (QPI), with amazing impress by point-to-point links, provide more stability and bandwidth enhancement, up to 36 PCI-Express 2.0 lanes, it also enable the nVidia SLI technology and ATI CrossFireX technology on the same motherboard.

Features :

• Design for Intel socket 1366 Nehalem Core i7 Extreme/ Core i7 45nm processors
• Intel X58 / ICH10R Chipset
• 12 Phases Power Design
• Support 6-DIMM DDR3-1866(OC)/1600(OC)/1333 up to 24G maximum capacity
• Support ATI CrossfireX and nVidia SLI Technology
• 100% X.D.C Japanese solid capacitor
• BIOSTAR Space-Pipe with high efficiency copper heat-pipe
• BIOSTAR G.P.U (Green Power Utility) Technology for Energy Saving
• BIOSTAR TPower Utility
• On board Dual GbE
• 1394a, eSATA, S/PDIF Out (Optical/Coaxial)

Specification :

CPU SUPPORT:
- Intel Core i7 Extreme Processor
- Intel Core i7 Processor
- QPI: Support QPI 6.4GT/s

MEMORY:
- Support Triple Channel DDR3 800/1066/1333/1600(OC)/1866(OC) MHz
- 6 x DDR3 DIMM Memory Slot
- Max. Supports up to 24GB Memory

EXPANSION SLOT:
- 2 x PCI Slots
- 1 x PCI-E x1 2.0 Slot
- 3 x PCI-E x16 2.0 Slot (x16,x16,x4)

STORAGE :- 6 x SATA2 3Gb/s Connector (Support RAID: 0,1,5,10)
- 2 x eSATA2 3Gb/s Connector (Support RAID: 0,1)
- 1 x IDE Connector

USB :- 8 x USB 2.0 Port
- 2 x USB 2.0 Header

IEEE 1394 :- 1 x IEEE 1394a Port
- 1 x IEEE 1394a Header

GbE :- Realtek RTL8111C - 10/100/1000 Controller
- Dual GbE

CODEC: Realtek ALC888S 8+2 Channel HD Audio

REAR I/O :
- 1 x PS/2 Keyboard
- 2 x eSATA2 3Gb/s Connector
- 1 x FireWire IEEE 1394a Port
- 8 x USB 2.0 Port
- 2 x RJ-45 Port
- 6 x Audio Connector
- 1 x S/PDIF Out Port

INTERNAL I/O :- 2 x USB 2.0 Header
- 6 x SATA2 3Gb/s Connector
- 1 x IDE Connector
- 1 x Floppy Connector
- 1 x Front Audio Header
- 1 x Front Panel Header
- 1 x CD-IN Header
- 1 x S/PDIF-OUT Header
- 1 x CPU FAN Header
- 2 x System FAN Header
- 1 x FireWire IEEE 1394 Header

DIMENSION : ATX Form Factor Dimension: 30.5 cm X 24.4 cm ( W x L )

OS SUPPORT : Support Windows 2000 / XP / XP 64 / Vista / Vista 64

ACCESSORIES :- 1 x IDE Cable
- 6 x SATA Cable
- 6 x SATA Power Cable
- 1 x SLI Setter
- 1 x I/O Shield
- 1 x CD Driver
- 1 x User Manual
